Automatic Foil Stamping and Die Cutting Machine D920T D1050T
2 Transversal foils feeding and 3 longitudinal foils feeding; Standard with 12 individually controlled heating zones
Introduction
This machine is mainly used for the stamping, embossing, die-cutting and creasing of carton box or label in packaging industry. From paper feeding to paper delivery, the whole working process is fully automatic. The working status and troubleshooting can be indicated with the interface equipped on the machine. To keep machine running stable, all the key components and controller system are imported brand. To ensure the safety operation, the sensors and safety devices are equipped on the machine
Technical Parameters
| Model | D920T | D1050T | D1050T |
| Max. Feeding Paper Format | 920×650mm | 1050×750mm | 1050×750mm |
| Min. Feeding Paper Format | 360×320mm | 400×360mm | 400×360mm |
| Max. Die cutting Format | 910×630mm | 1040×730mm | 1040×730mm |
| Max .Stamping Format | 900×600mm | 1020×720mm | 1020×720mm |
| Max. Working Pressure | 300t | 300t | 500t |
| Paper Range | Corrugated ≤4mm(max) | Corrugated ≤4mm(max) | Corrugated ≤4mm(max) |
| Cardboard ≥80g | Cardboard ≥80g | Cardboard ≥80g | |
| Min. Gripper Margin | 8mm | 9.5mm | 9.5mm |
| Die cutting Precision | ±0.1mm | ±0.1mm | ±0.1mm |
| Stamping Precision | ±0.1mm | ±0.1mm | ±0.1mm |
| Max. Die Cutting Speed | 8200 sheets/hour | 7500 sheets/hour | 7500 sheets/hour |
| Max. Stamping Speed | 6000 sheets/hour | 6000 sheets/hour | 6000 sheets/hour |
| The Number Of Heating Zones | 12 | 12 | 12 |
| Foil Group | 5 | 5 | 5 |
| Max. Feeding Pile Height | 1500mm | 1600mm | 1600mm |
| Max. Delivery Pile Height | 1300mm | 1400mm | 1400mm |
| Total Power Consumption | 65kW | 65kW | 65kW |
| Total Weight | 17t | 18t | 20t |
| Dimension (L×W×H) | 5200×3960×2500mm | 7181×4091×2523mm | 7181×4091×2523mm |
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.

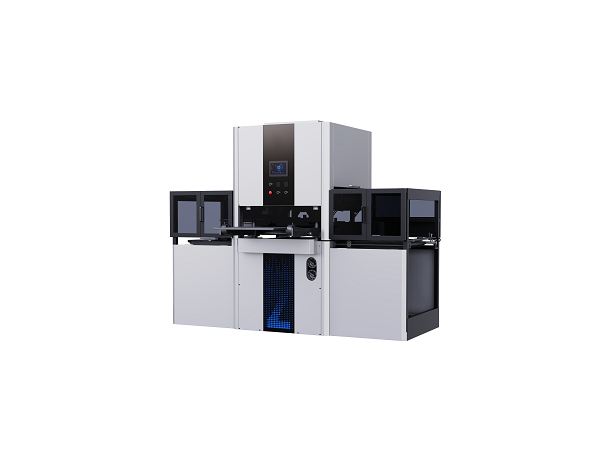

EASYstamp 750B 930B 1060B
