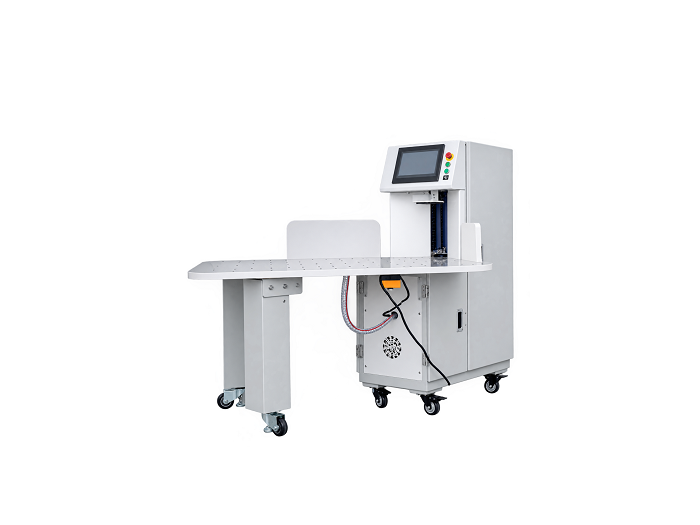

Paper Counter
This machine can automatically complete paper counting and paper insertion. It is applicable to 30-240g carbon paper, offset printing paper, coated paper, etc. Different kinds of paper can be mixed counting simultaneously.
Introduction
This machine can automatically complete paper counting and paper insertion. It is applicable to 30-240g carbon paper, offset printing paper, coated paper, etc. Different kinds of paper can be mixed counting simultaneously.
Technical Parameters
|
Model |
PC-1200A30 |
|
Counting Speed |
0–2100 pcs/minute |
|
Paper Range |
30g/m²–240g/m² |
|
Paper Size (mm) |
Max: 788 (L) ×1200 (W) Min: 100 (L) × 150 (W) |
|
Working Table Size |
900 (L) × 1200 (W) |
|
Label Size |
Width:5mm Length:210m |
|
Label Insert |
Every 2 to 1000 sheets |
|
Max. Stacking Height (mm) |
300 |
|
Working Table Height (mm) |
740 |
|
Power Supply |
AC100V–240VAC, 50/60Hz single phase |
|
Total Power Consumption |
0.7kW |
|
Machine size (L×W×H) (mm) |
1770 × 1000 × 1460 |
|
Machine Weight (kg) |
160 |
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.
Loader & Unloader
Loader and unloader are key auxiliary equipment for the intelligent cutting line. The intelligent cutting line consisted of loader, paper cutting machine and unloader is capable to automatically load, jog, transport and unload the paper. It features the high efficiency, low labor intensity and short make-ready time.
Learn More
Pile Turner
The paper-pile turning machine can be used before printing, polishing and processing. By using the machine, a stack of paper is cleaned up and piled up neatly so that papers can fly into the machine in smooth way, cases of double sheets and dirt or dust on the type area won't easily happen and work efficiency and quality can be promoted. The machine can also be used in post-print process, such as rolling over the back if paper, reprinting, back polishing, and change of the pallet, packaging and transportation.This is a good machine with on occupational injuries, which helps save both time and manpower and promotes work efficiency
Lifter
Lifting board are driven by hydraulic power
Lifting and lowering is controlled by push buttons on the control panel
Stack height can be maintained automatically
Paper Counter
This machine can automatically complete paper counting and paper insertion. It is applicable to 30-240g carbon paper, offset printing paper, coated paper, etc. Different kinds of paper can be mixed counting simultaneously.
Learn More
